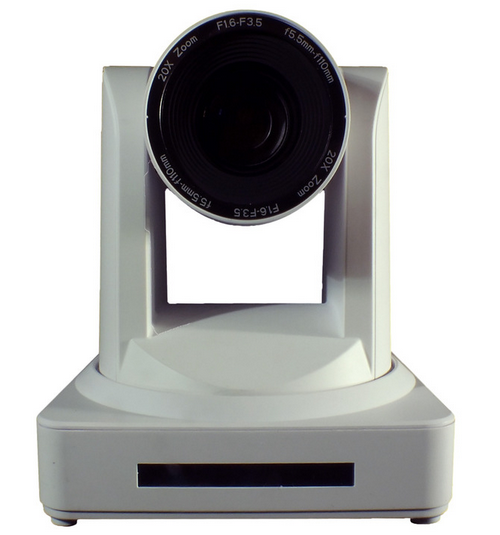

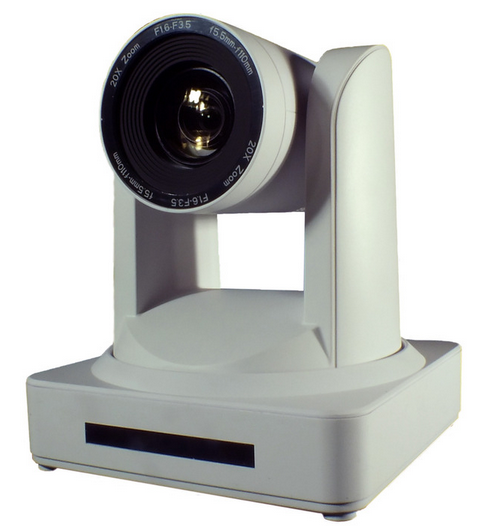

AVesentials OPTEC20 20x Optical Zoom PTZ Camera

£1,529.00

Out of stock

Categories: , Tag:

Description

The AVesentials Optec20 High Definition camera assures quality images every time with superior optics and image processing. The 20X optical zoom and feature rich specification make this a product for any environment.

PRODUCT DESCRIPTION

The Optec20 Pan Tilt Zoom camera is the perfect solution for installations where image quality is paramount whilst offering unparalleled features at a groundbreaking price.

SDI and HDMI outputs, Full 1080P @ 60Hz, Power Over Ethernet (POE) are just some of the included features. VISCA control protocol assures compatibility with most controllers.

A sleek design and availability in Black or White colours allows for a discrete installation.

The Optec20 carries a 2 year warranty for peace of mind performance.

KEY FEATURES

Performance
Sensor High performance 1/2.8“ HD CMOS sensor
Optical Zoom 20x
Digital Zoom 10x
Focal Length F=5.2~98mm
Viewing Angle 3.3°(tele)
54.7°(wide)
Aperture F1.6 ~ F3.5
Minimum Illumination 0.5Lux (F1.8, AGC ON)
Signal to Noise ratio >55dB
Pan Range ±170° (Movement Speed 0.1 -180°/sec)
Tilt Range -30° ~ +90° (Movement Speed 0.1-80°/sec)
Preset Recall Speed: Pan: 60°/sec, Tilt: 30°/sec

Camera Features
White Balance Auto/ Manual/ One Push/ 3000K/ 4000K/ 5000K/ 6500K
WDR OFF/ Dynamic level adjustment
Image Adjustment Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma
Optics Control Auto Focus, Auto Aperture, Auto Electronic Shutter, BLC
Programmable Presets 255 (only 10 via remote control)
Configuration On Screen Menu / Advanced http control interface

Control & Connectivity

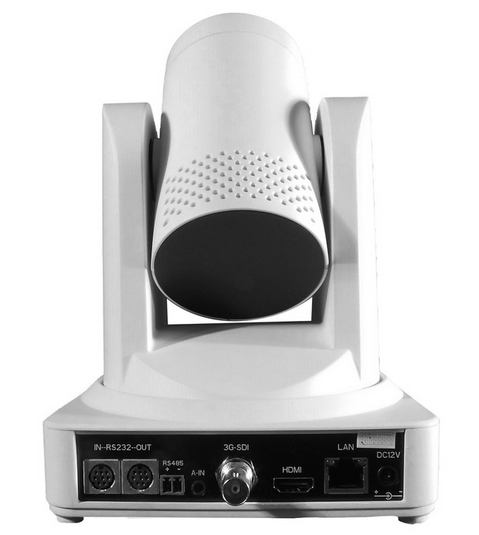

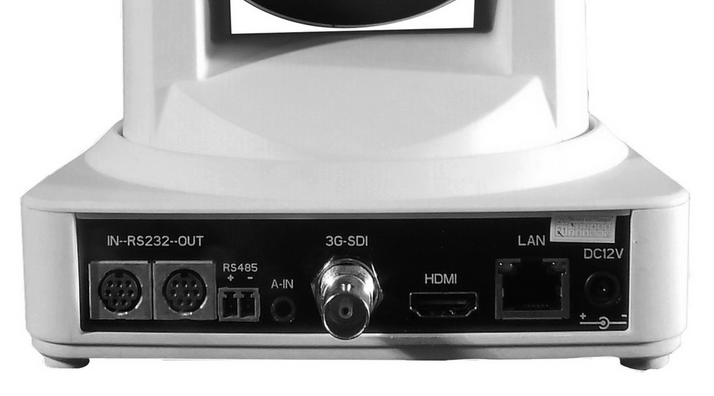

Video Out 3G-SDI / HDMI
Control Connections (1x) RJ45 LAN Port (PoE), (1x) RS232 (In & Out), (1x) RS485 on Phoenix Connector
Audio input 3.5mm Jack
Supported Control Protocols VISCA, VISCA over IP, PELCO-D, PELCO-P
Supported Network Protocols RTMP, RTSO, ONVIF
SDI/HDMI Supported Video Formats 1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97

Electrical & Physical
Power Supply Either external PSU, or POE
Input Voltage DC12V±10%
Current Draw 1a (max)
Power Consumption 12w (max)
Temperature Tolerance Working Temperature: -10~+50°C, Store Temperature: -10~+60°C
Humidity Tolerance Working Humidity: 20~80% RH, Store Humidity: 20~95% RH
Colour White or Black
Dimensions 150×150×167.5mm
Weight 1.4kg
Included Accessories Power Supply, Remote Control,
Optional Wall Mount Bracket / NDI
